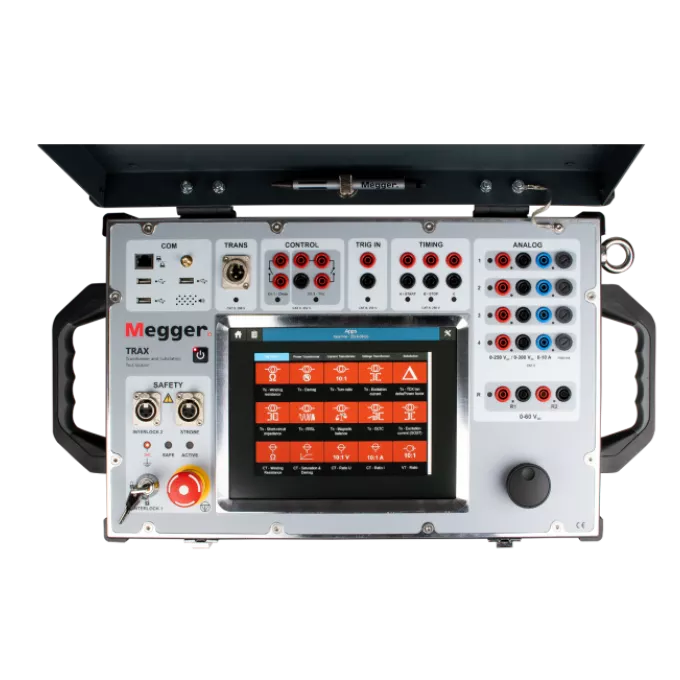

Megger TRAX Multifunction Transformer and Substation Test System
A portable multifunction test system for power transformers and substation assets, combining more than 20 electrical test functions in one configurable platform.
TECHNICAL PRODUCT CATALOG
Online Shop
Browse testing equipment and request a technical quotation. Product suitability, availability and pricing are confirmed for your project.
27 solutions
Manufacturer names identify official product listings. Catalog Preview entries are illustrative; confirm configuration and availability before ordering.

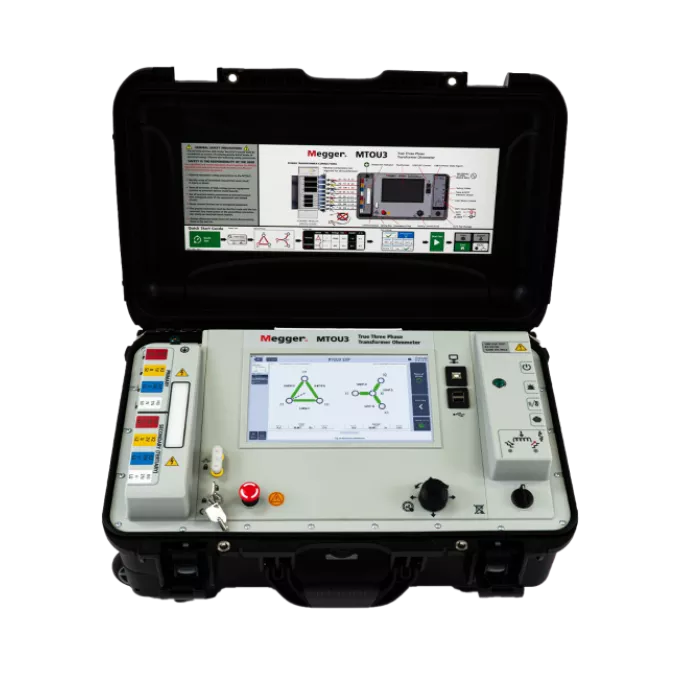

Megger MTOU3 Three-Phase Winding Resistance Ohmmeter
A true three-phase winding resistance ohmmeter for power, distribution and instrument transformers, with one-time lead connection, automatic adaptive demagnetization and vector confirmation before every test.

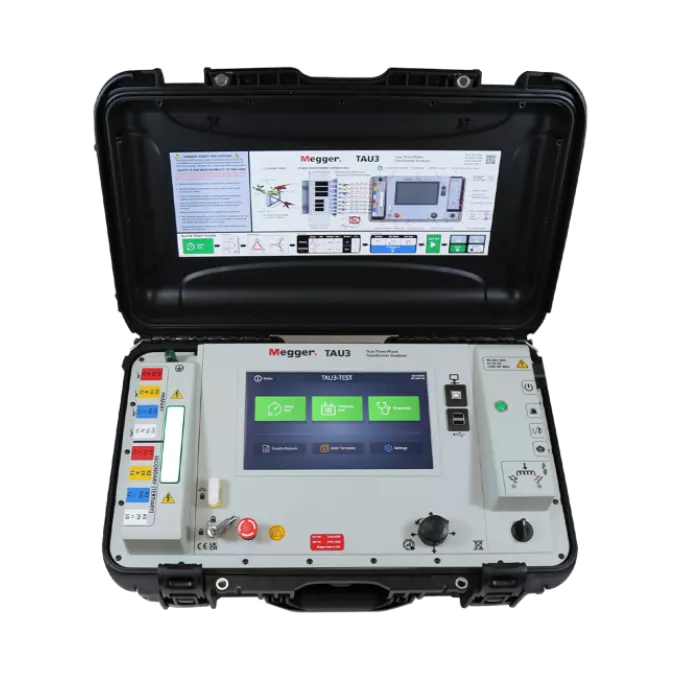

Megger TAU3 True Three-Phase Transformer Winding Analyser
A true three-phase transformer analyser for electro-mechanical testing of power, distribution and instrument transformers, performing turns ratio, winding resistance, demagnetization, short-circuit impedance and efficiency tests with a one-time lead connection.

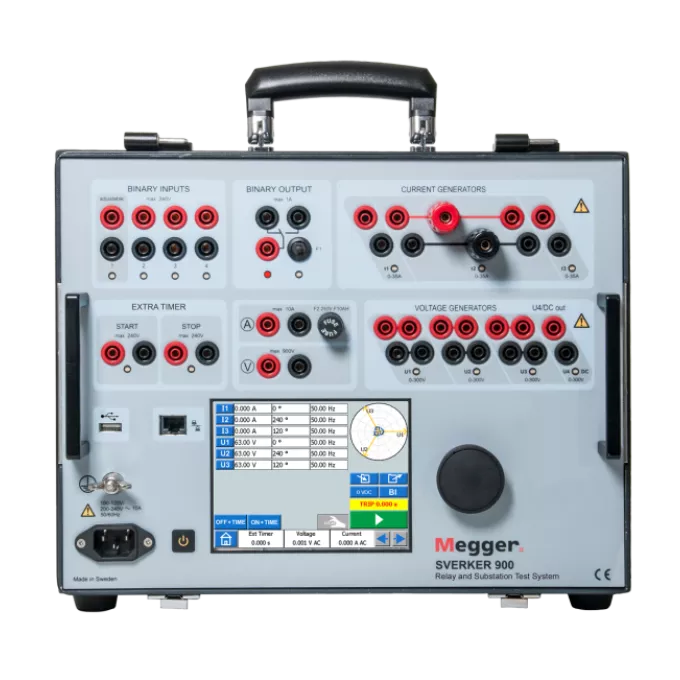

Megger SVERKER 900 Relay and Substation Test System
A three-phase relay and substation test system for electrical distribution substations, renewable power generation stations and industrial applications, combining three current and four voltage sources with a range of measurement possibilities.

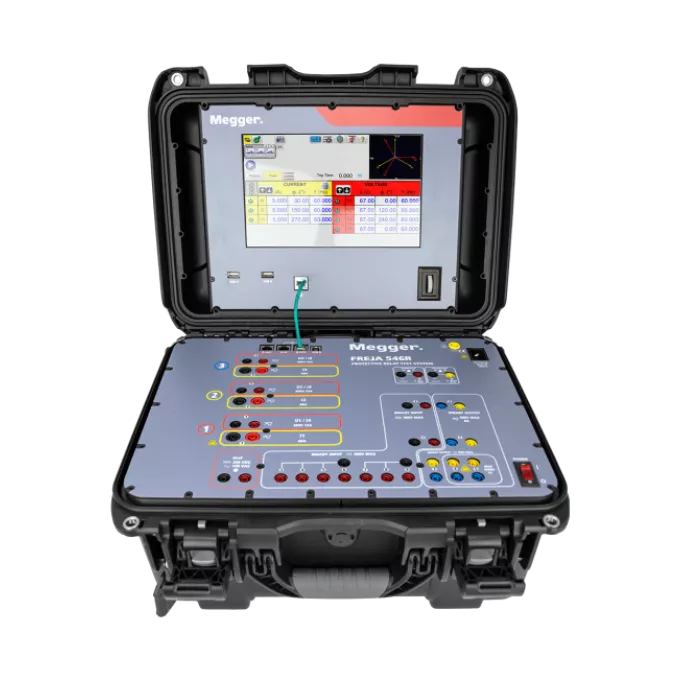

Megger FREJA 546R Relay Test System
A multi-purpose, lightweight, field-portable test set for electro-mechanical, solid-state and microprocessor-based protective relays, motor overload relays and similar protective devices, with an onboard touch display and RTMS software.

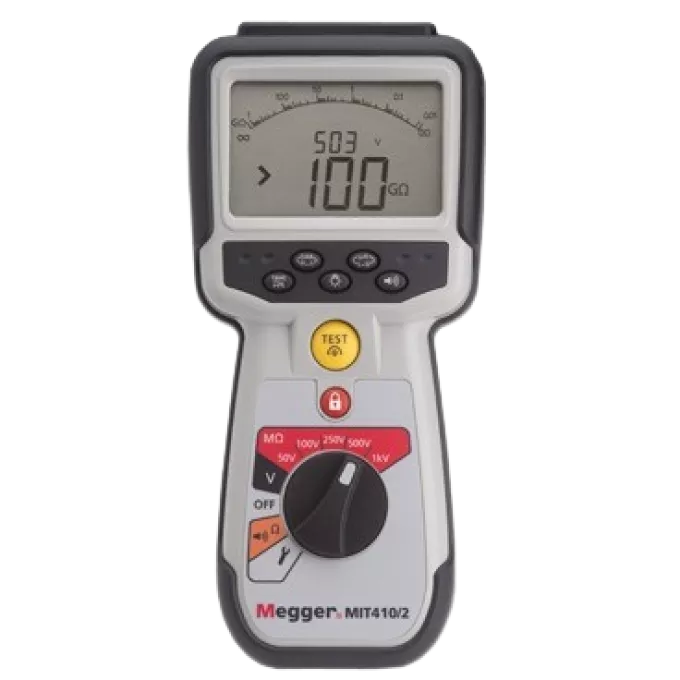

Megger MIT400/2 Series Insulation and Continuity Testers
A series of CAT IV insulation and continuity testers for electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics and maintenance applications.

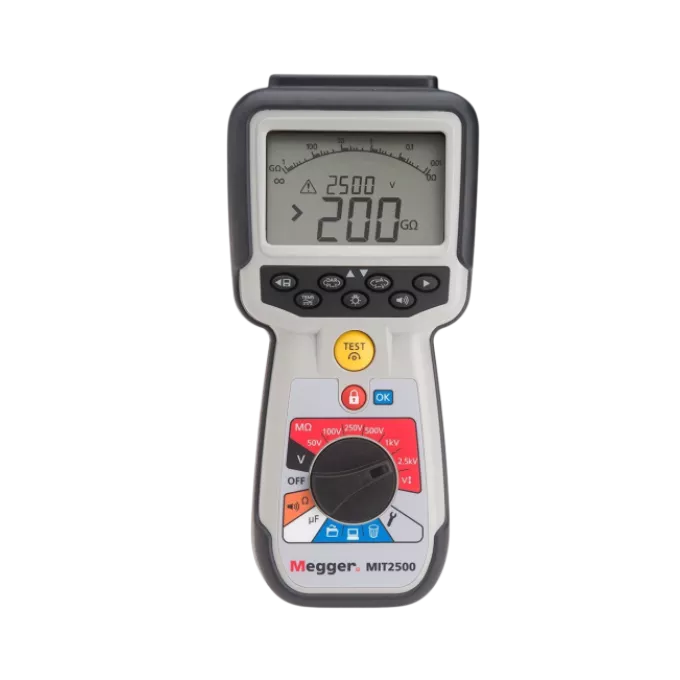

Megger MIT2500 High-Voltage Handheld Insulation and Continuity Tester
A high-voltage handheld insulation and continuity tester for motor and cable testing and specialist applications where operating voltages exceed 1000 V and higher insulation test voltages are needed.

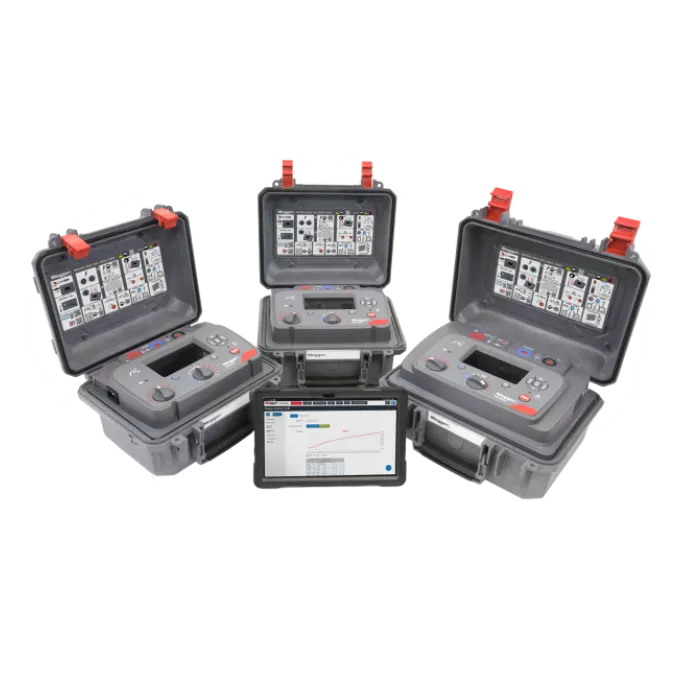

Megger Advanced 5 kV, 10 kV and 15 kV Insulation Resistance Testers
A range of 5 kV, 10 kV and 15 kV insulation resistance testers for transformers, motors, switchgear and cables in environments up to 230 kV, with diagnostic tests for condition assessment and maintenance planning.

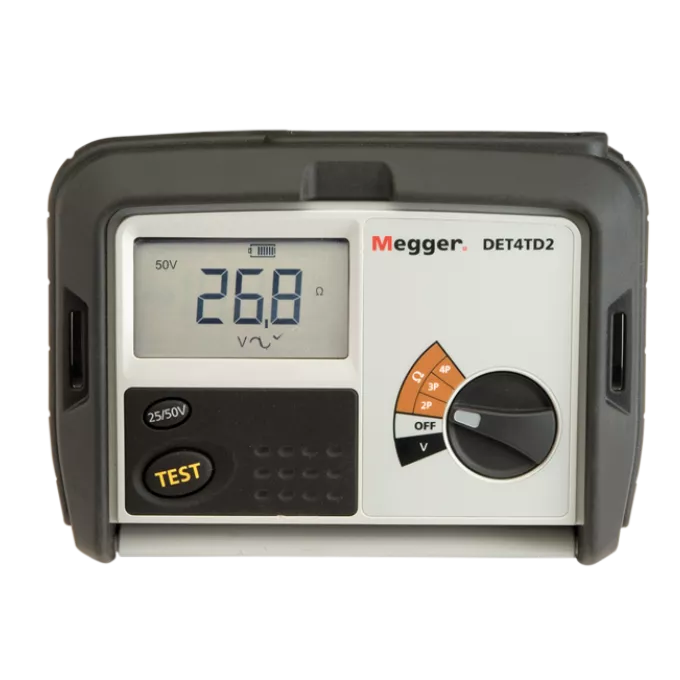

Megger DET4 Series Four-Terminal Earth/Ground Resistance Testers
A series of four-terminal earth/ground resistance testers for earth/ground and soil resistivity testing, available in dry-cell and rechargeable versions with kit variants for greater testing flexibility.

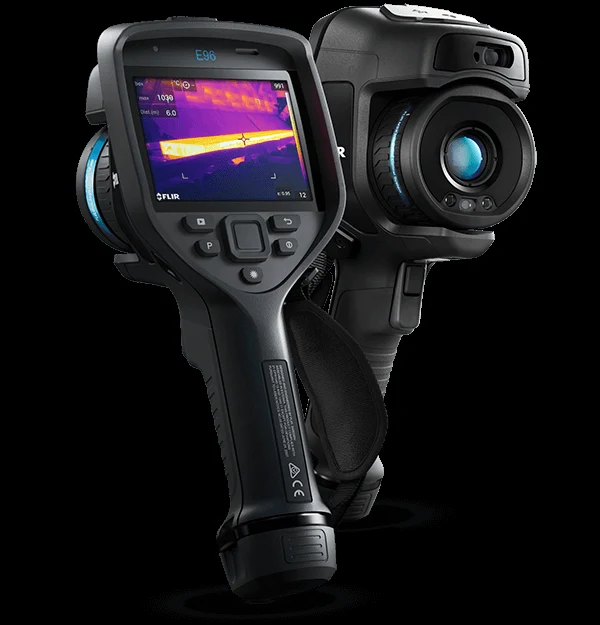

FLIR E96 Advanced Thermal Imaging Camera
FLIR’s first pistol-grip camera with 640 × 480 thermal resolution, built to survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures.

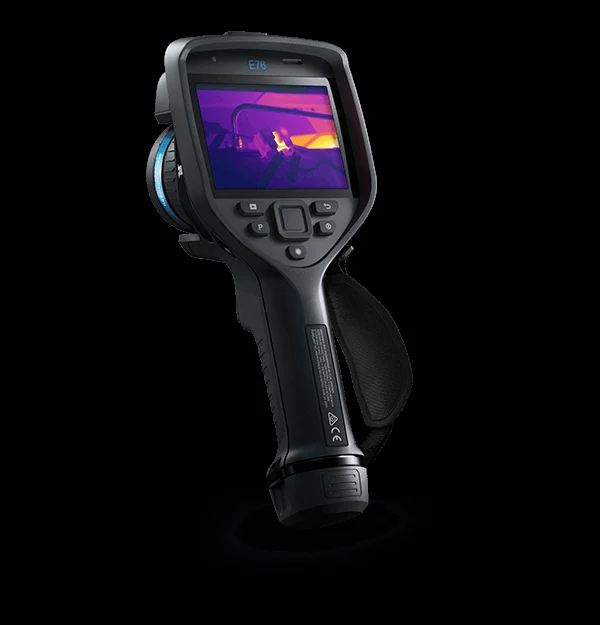

FLIR E76 Advanced Thermal Imaging Camera
A 320 × 240 thermal imaging camera with laser-assisted autofocus and interchangeable lenses, covering near and distant targets for electrical and mechanical inspection.

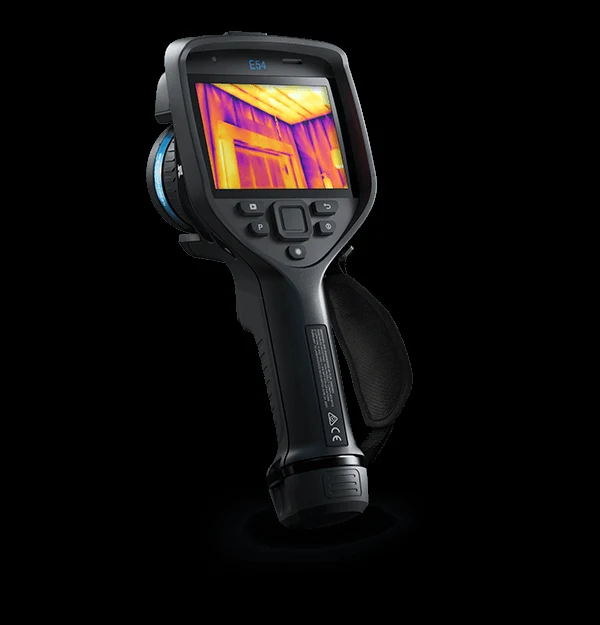

FLIR E54 Advanced Thermal Imaging Camera
An entry point to the Exx-Series with the resolution and sensitivity needed for basic condition monitoring, electrical/mechanical inspection and building inspection, measuring temperatures up to 650 °C.

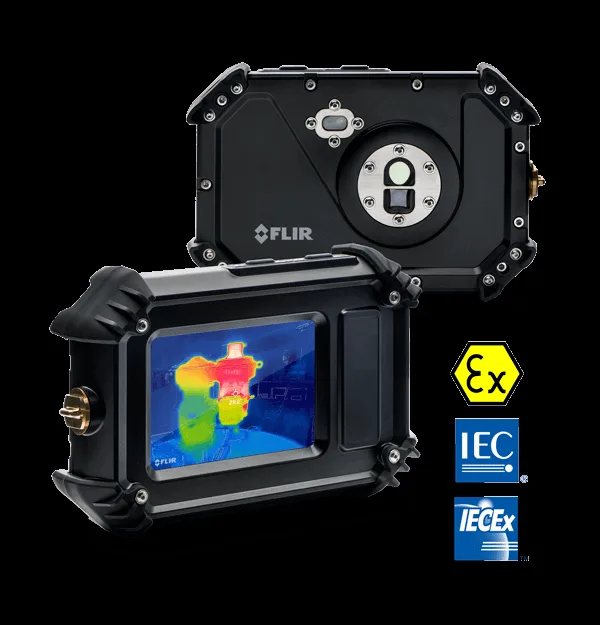

FLIR Cx5 Hazardous Location Thermal Camera
A hazardous location-rated thermal camera certified for use in explosive gas, vapor and dust environments — no hot work permit needed — with FLIR MSX imaging and 1-Touch Level/Span for quick problem identification.

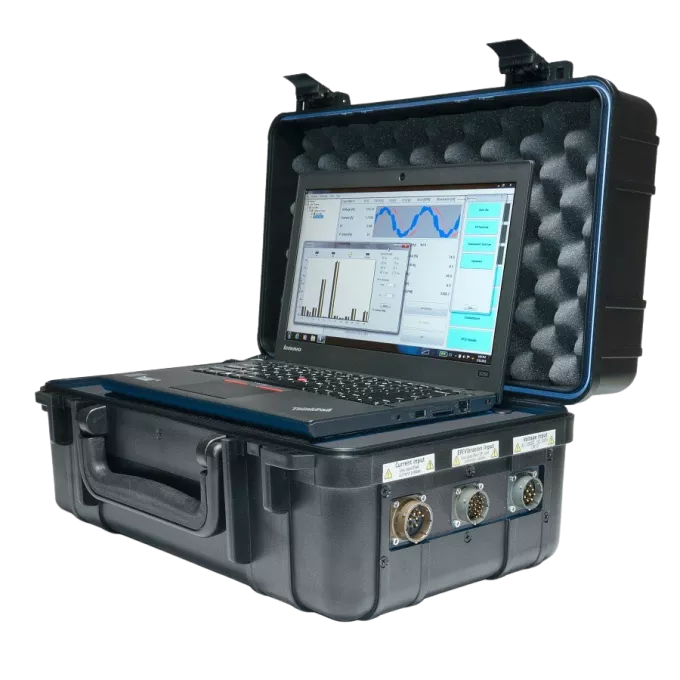

Baker EXP4000 Dynamic Motor Analyser
A portable, battery-powered dynamic motor analyser that monitors running motors in real time — capturing power quality, motor efficiency, torque and mechanical stress indicators to catch faults before they cause downtime.

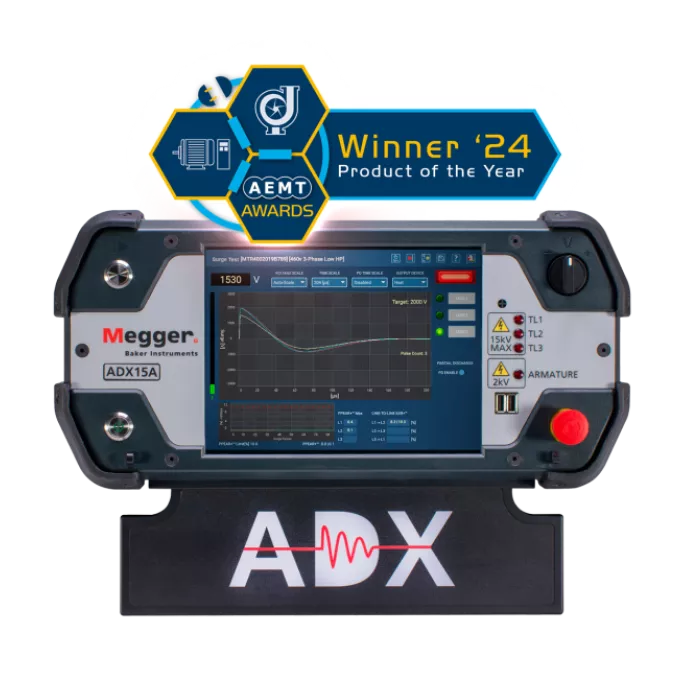

Baker ADX Automated Static Motor Tester
An automated static motor analyser offering the complete range of tests to determine motor health, analyse trends and find faults — with high-voltage testing up to 15 kV, extendable to 40 kV with power packs.

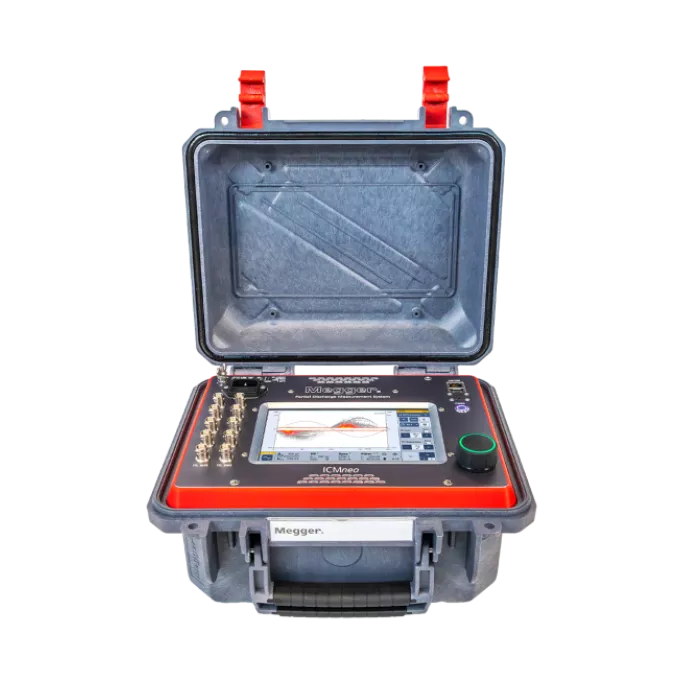

ICMneo Digital Partial Discharge Test Device
A compact, stand-alone digital partial discharge measurement device for medium and high voltage insulation assessment — battery operated with a 7 in touchscreen and up to four parallel measurement channels.

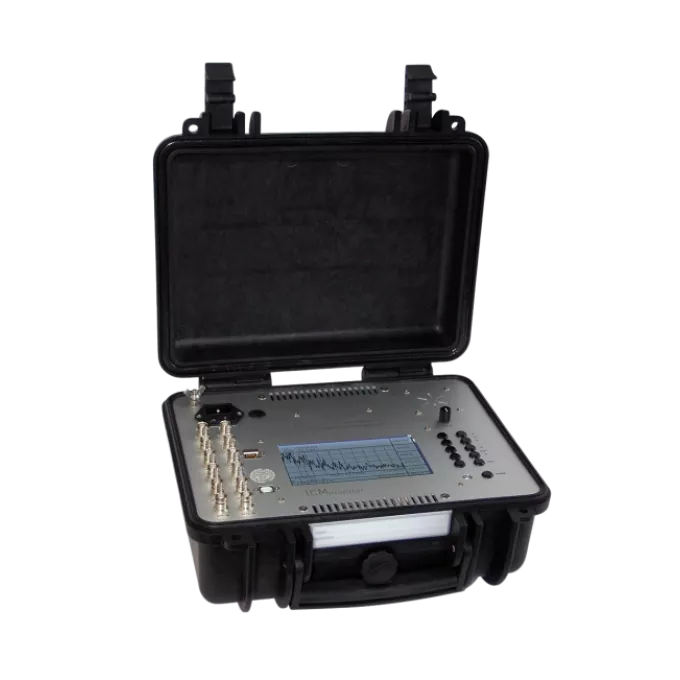

ICMmonitor Portable Partial Discharge Monitoring System
A compact, non-invasive partial discharge monitor for continuous on-line evaluation of MV/HV asset insulation — combining a spectrum analyser, acoustic detector and conventional PD monitor in one instrument.
Transformer Diagnostic Test System
A configurable instrument category for transformer electrical testing and condition assessment.
VLF Cable Test System
Portable test system category for assessing medium-voltage cable insulation.
Circuit Breaker Analyzer
Test instrument category for circuit breaker timing and mechanical performance analysis.
CT / VT Analyzer
Instrument transformer test equipment for ratio, polarity and excitation assessment.

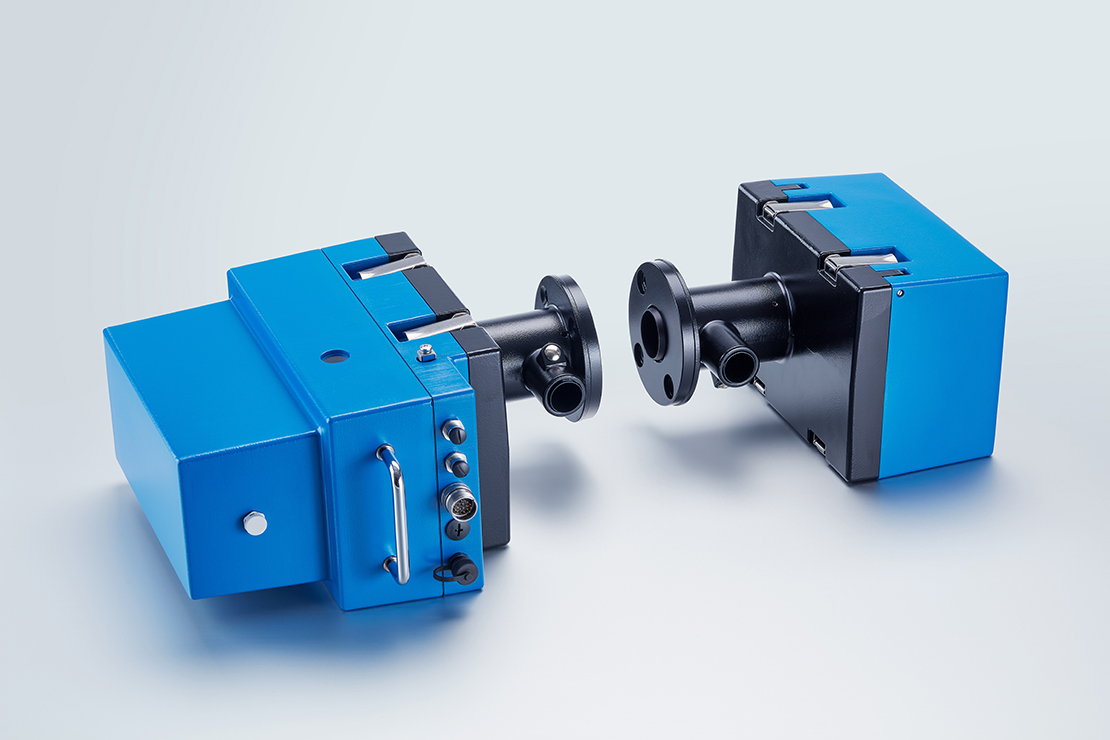

DURAG D-R 290 Dust and Opacity Monitor
Continuous, contactless dust and opacity measurement at medium to high concentrations in dry flue and process gases, also suitable for difficult plant conditions.
Industrial Air Quality Monitor
Portable monitoring instrument category for industrial air quality measurements.
Vibration Analysis Analyzer
Portable instrument category for assessing rotating machinery vibration and bearing condition.
Thermal Imaging Camera
Imaging instrument category for detecting abnormal temperature rise in electrical assets.
Insulated Gloves & Sleeves Set
Protective glove and sleeve configuration category for work on de-energized and adjacent equipment.
Portable Earthing & Short-Circuiting Set
Earthing and short-circuiting configuration category for safe isolation procedures.
